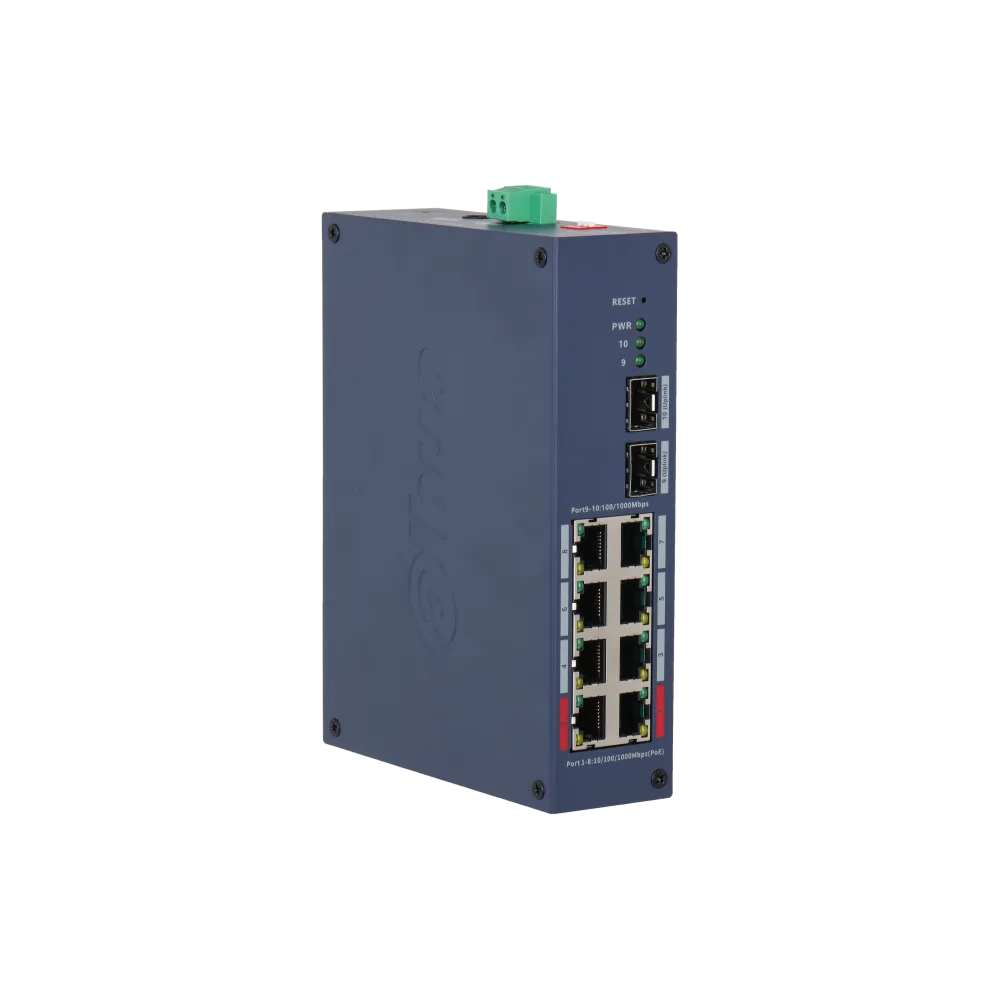

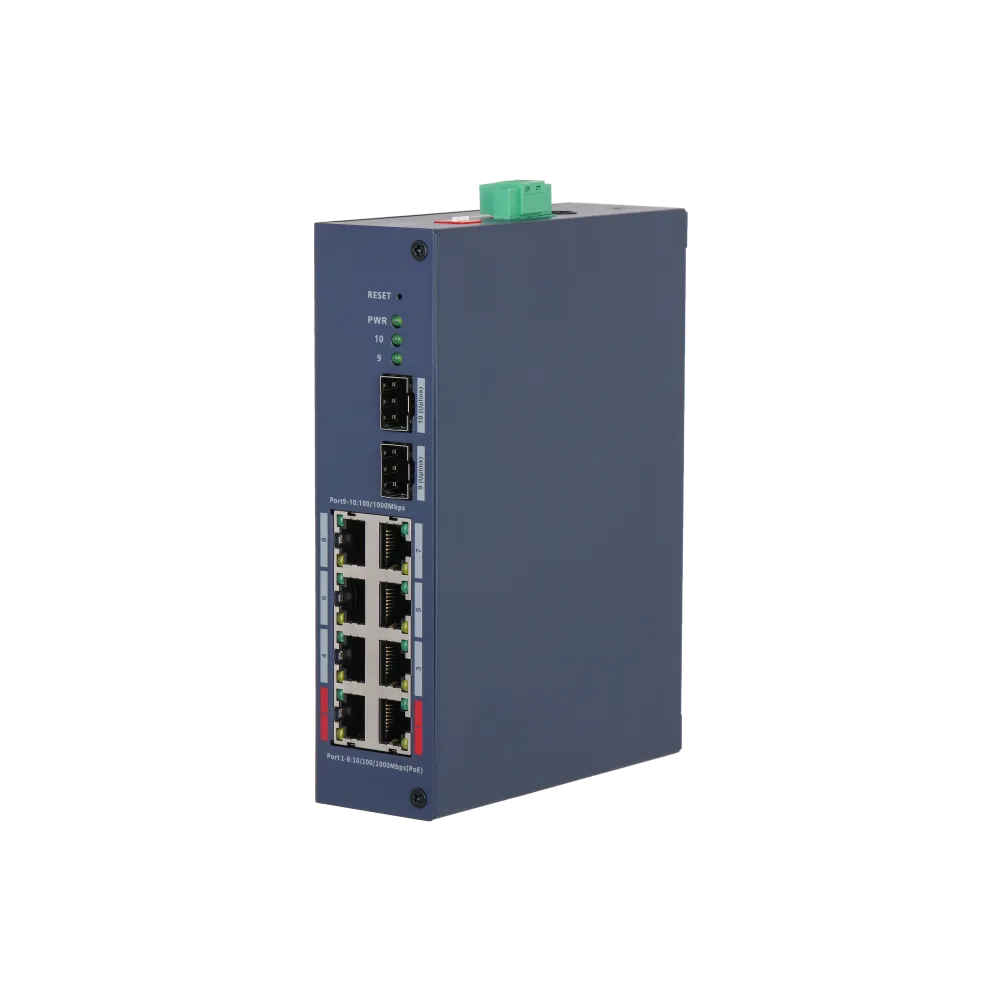

Dahua CHS4210-8GT-110 – Managed Industrial PoE Switch, 8× Gigabit + 2× SFP, 110 W

The Dahua CHS4210-8GT-110 is a managed Layer 2 industrial PoE switch designed for demanding IP video surveillance, factory, and industrial network deployments. It combines 8 Gigabit RJ45 PoE ports with 2 SFP uplink ports and offers flexible management via web UI, cloud platform (DoLynk Care), or a physical DIP switch.

Key features

• Ports: 2 × RJ45 10/100/1000 Base-T Hi-PoE (IEEE 802.3af/at/bt) + 6 × RJ45 10/100/1000 Base-T PoE (IEEE 802.3af/at) + 2 × SFP 100/1000 Base-X Uplink
• PoE standards: IEEE 802.3af / 802.3at / Hi-PoE / IEEE 802.3bt
• PoE power: ports 1–2 up to 90 W each; ports 3–8 up to 30 W each; total PoE budget ≤ 110 W
• PoE features: PoE Watchdog, Extend mode (transmission up to 250 m at 10 Mbps), power management
• Switching capacity: 20 Gbps
• Packet forwarding rate: ~14.88 Mpps
• MAC table: 8 K entries
• Packet buffer: ~8.4 Mbit
• VLAN: port-based VLAN and basic VLAN support
• Protocols: STP / RSTP, port isolation, multicast/broadcast storm protection
• Management: Web UI, DoLynk Care cloud management, DIP switch (managed/unmanaged)
• Protection: IP30, IK06, ESD 8 kV (air) / 6 kV (contact), surge protection, lightning protection
• Enclosure: metal, DIN-rail or desktop mounting
• Operating temperature: –30 °C to +65 °C
• Power supply: 48–57 V DC (external PSU included)
• Power consumption: ~2 W idle; ~116.6 W at full load

Ideal for B2B installations in IP surveillance systems where reliable high-power PoE for PTZ cameras or access points is required, combined with robust protection against harsh environmental conditions.
